HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US เครื่องขุด
| Place of Origin | China |
|---|---|
| ชื่อแบรนด์ | TQ |
| ได้รับการรับรอง | CE,ISO |
| Model Number | 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL |
| Minimum Order Quantity | 1 PCS |
| ราคา | Negotiable price |
| รายละเอียดการบรรจุ | กล่องไม้หรือตามความจำเป็น |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union,T/T |
| สามารถในการผลิต | 300 ชิ้น / เดือน |
ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง
วอทส์แอพพ์:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| Product name | 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL | รุ่นเครื่องที่ใช้บังคับ： | HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US รถขุด |
|---|---|---|---|
| Applicable Industries： | Mechanical repair shops, retail, construction, energy, mining | category | SWING MOTOR |
| สภาพ | ใหม่/สร้างใหม่ | Brand | TQ |
| เน้น | ZX120 ZX130LCN สวิงมอเตอร์,ZX135US สวิงมอเตอร์,ZX120-3 ZX130-3 สวิงมอเตอร์ |
||
รายละเอียดสินค้า

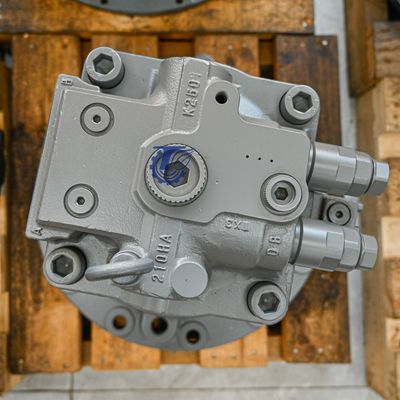

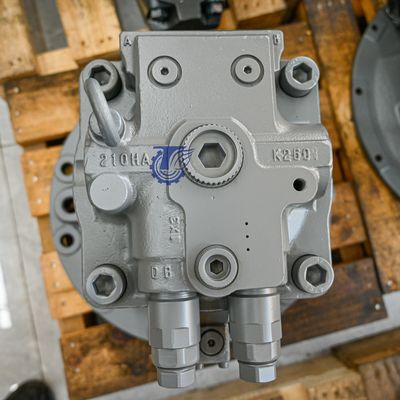

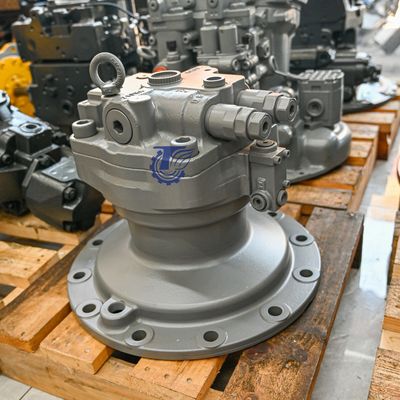

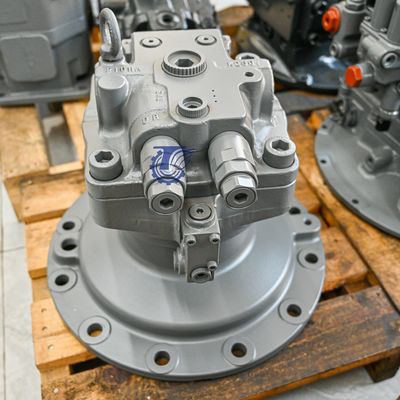

9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING MOTOR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Parts on group MOTOR;OIL (SWING): | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 9177550 | [1] | MOTOR;OIL | I 9196961 <for assembly of machine> | |
| -9196961 | [1] | MOTOR;OIL | <for transportation> | |
| 1 | 8080152 | [1] | CASING | |
| 01A. | +++++++ | [1] | CASING;MOTOR | |
| 01B. | +++++++ | [1] | PLUNGER;ASSY | |
| 2 | 4320490 | [1] | SEAL;OIL | |
| 3 | 3085794 | [1] | SHAFT | |
| 5 | 991342 | [1] | RING;RETAINING | |
| 6 | 4402669 | [1] | BRG.;ROL. | |
| 7 | 940144 | [1] | RING;RETAINING | |
| 8 | 4396102 | [1] | PLATE;SWASH | |
| 10 | 2043442 | [1] | ROTOR | |
| 12 | 4413753 | [1] | SPRING;DISC | |
| 13 | 4413700 | [1] | BUSHING | |
| 14 | 8071556 | [9] | PISTON | |
| 15 | 3081727 | [1] | RETAINER | |
| 17 | 3087818 | [4] | PLATE;FRICTION | |
| 19 | 3075729 | [4] | PLATE | |
| 21 | 3084716 | [1] | PISTON | |
| 22 | 4413765 | [1] | O-RING | |
| 23 | 4413764 | [2] | O-RING | |
| 24 | 4434436 | [1] | SPRING;DISC | |
| 26 | 3089613 | [1] | PLATE;VALVE | |
| 28 | 9177595 | [1] | VALVE;BRAKE | I 9198979 <for assembly of machine> |
| 28 | -9198979 | [1] | VALVE;BRAKE | <for transportation> |
| 29 | 4413768 | [1] | BRG.;NEEDLE | |
| 30 | 4413761 | [2] | PIN;KNOCK | |
| 32 | A590916 | [4] | WASHER;SPRING | |
| 34 | M341650 | [4] | BOLT;SOCKET | |
| 36 | M492564 | [2] | SCREW;DRIVE | |
| 37 | 3088886 | [1] | NAME-PLATE | |
| 41 | 9134110 | [3] | PLUG | |
| 41A. | 957366 | [1] | O-RING | |
| 43 | 9134109 | [1] | PLUG | |
| 43A. | 4506408 | [1] | O-RING | |
| 45 | 4399892 | [1] | POPPET | |
| 46 | 4398846 | [1] | SPRING;COMPRES. | |
| 47 | 4452178 | [1] | WASHER;PLANE | |
| 50 | 4398889 | [1] | SPRING;COMPRES. | |
| Parts on group SWING DEVICE: | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 0 | 2044629 | [1] | SHAFT;PROP. | |
| 1 | 3083710 | [1] | SLEEVE | |
| 2 | A811095 | [1] | O-RING | |
| 3 | 4430041 | [1] | BRG.;ROL. | |
| 4 | 4411143 | [1] | SEAL;OIL | |
| 5 | 1027901 | [1] | HOUSING | |
| 6 | 4408119 | [1] | BRG.;ROL. | |
| 7 | 3083674 | [1] | NUT | |
| 8 | 4407745 | [1] | PLATE;LOCK | |
| 10 | J901020 | [2] | BOLT | |
| 11 | 2042965 | [1] | CARRIER | |
| 12 | 4176070 | [1] | PLATE;THRUST | |
| 13 | 4408102 | [3] | PIN | |
| 14 | 4414855 | [3] | BRG.;NEEDLE | |
| 15 | 3084940 | [3] | GEAR;PLANETARY | |
| 16 | 4414833 | [6] | PLATE;THRUST | |
| 17 | 4116308 | [6] | PIN;SPRING | |
| 19 | 3092035 | [1] | GEAR;SUN | |
| 20 | 2045146 | [1] | GEAR;RING | |
| 21 | M341440 | [12] | BOLT;SOCKET | |
| 23 | 2042964 | [1] | CARRIER | |
| 24 | 4244904 | [1] | PLATE;THRUST | |
| 25 | 4408122 | [3] | PIN | |
| 26 | 4430040 | [3] | BRG.;NEEDLE | |
| 27 | 3083741 | [3] | GEAR;PLANETARY | |
| 28 | 4408002 | [3] | PLATE;THRUST | |
| 29 | 3083740 | [1] | GEAR;SUN | |
| 31 | 3087949 | [1] | PIPE | |
| 33 | 94-2012 | [1] | PLUG | |
| 61 | 8082514 | [1] | COVER | (for transportation) |
| 62 | J011040 | [7] | BOLT;SEMS | |
| 62 | J271040 | [7] | BOLT;SEMS | T J901040 (for transportation) |
| J222010 | ||||
| 64 | 94-2011 | [1] | PLUG | (for transportation) |
| 65 | 3053093 | [1] | NAME-PLATE | (for transportation) |
| 66 | M492564 | [2] | SCREW;DRIVE | (for transportation) |
| 101 | 9177550 | [1] | MOTOR;OIL | I 9196961 (for assembly of machine) |
| 101 | 9196961 | [1] | MOTOR;OIL | (for transportation) |
| 102 | 927488 | [1] | RING;RETAINING | |
| 106 | 4298608 | [1] | CAP | |
| 107 | M341025 | [7] | BOLT;SOCKET | |
| 108 | 3053093 | [1] | NAME-PLATE | |
| 109 | M492564 | [2] | SCREW;DRIVE | |
| 114 | 4449144 | [1] | PIPE | |
| 115 | 3090862 | [1] | GAUGE;LEVEL | |
| 116 | 4449182 | [1] | PIPE | |
| 117 | 4436535 | [1] | SENSOR;PRES. | |
| 200 | 9196343 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
Why choose us?
1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?
2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?
3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?
4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.
5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
